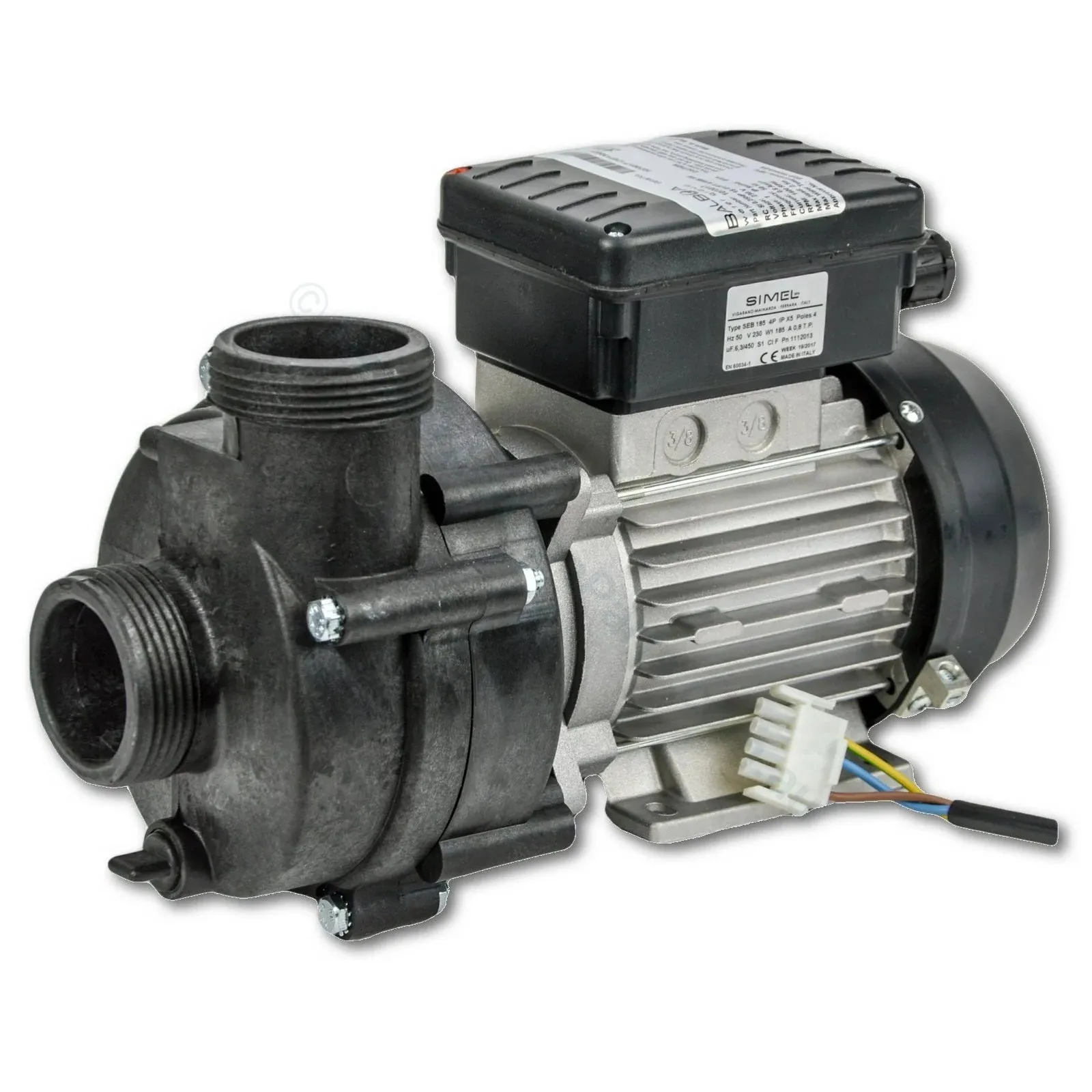

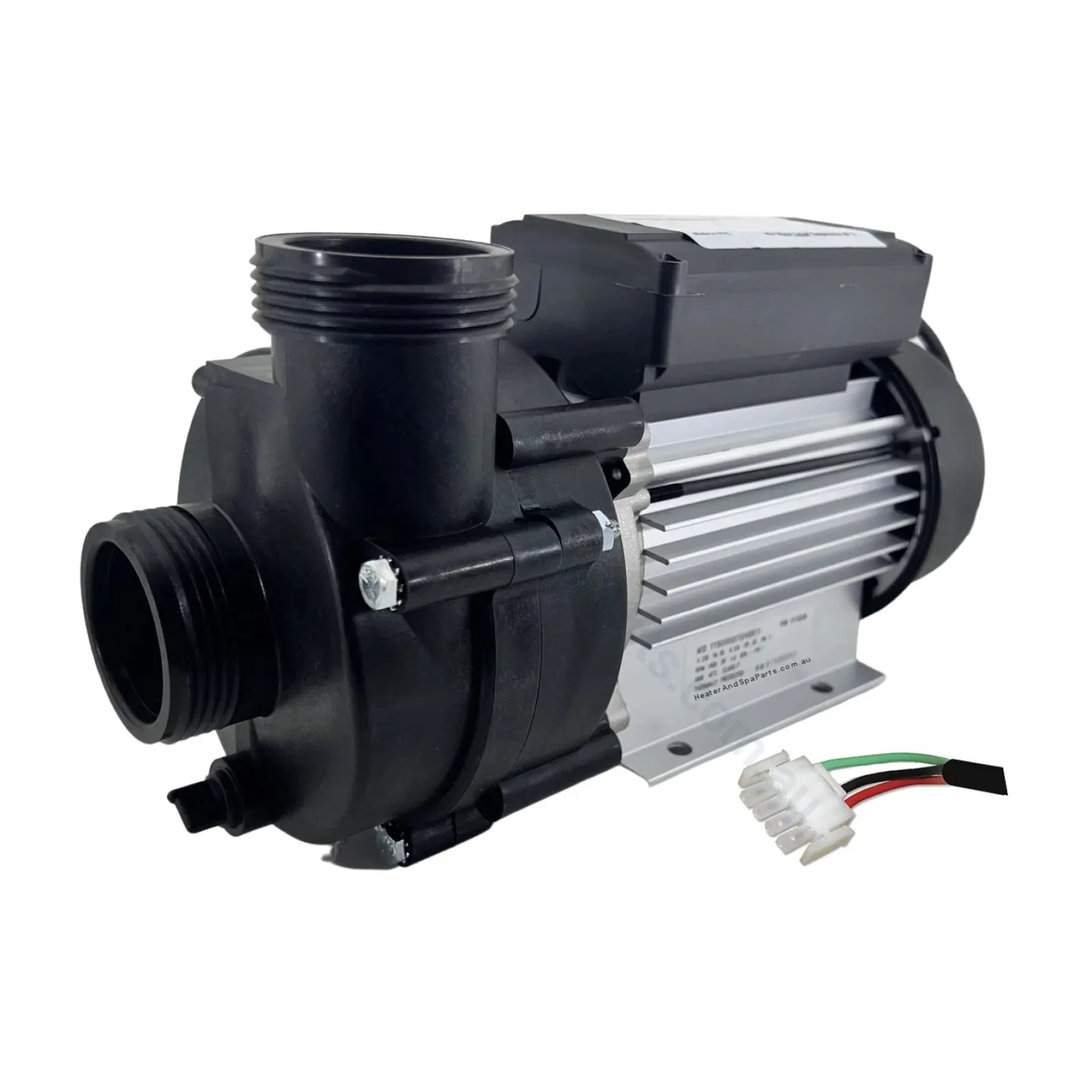

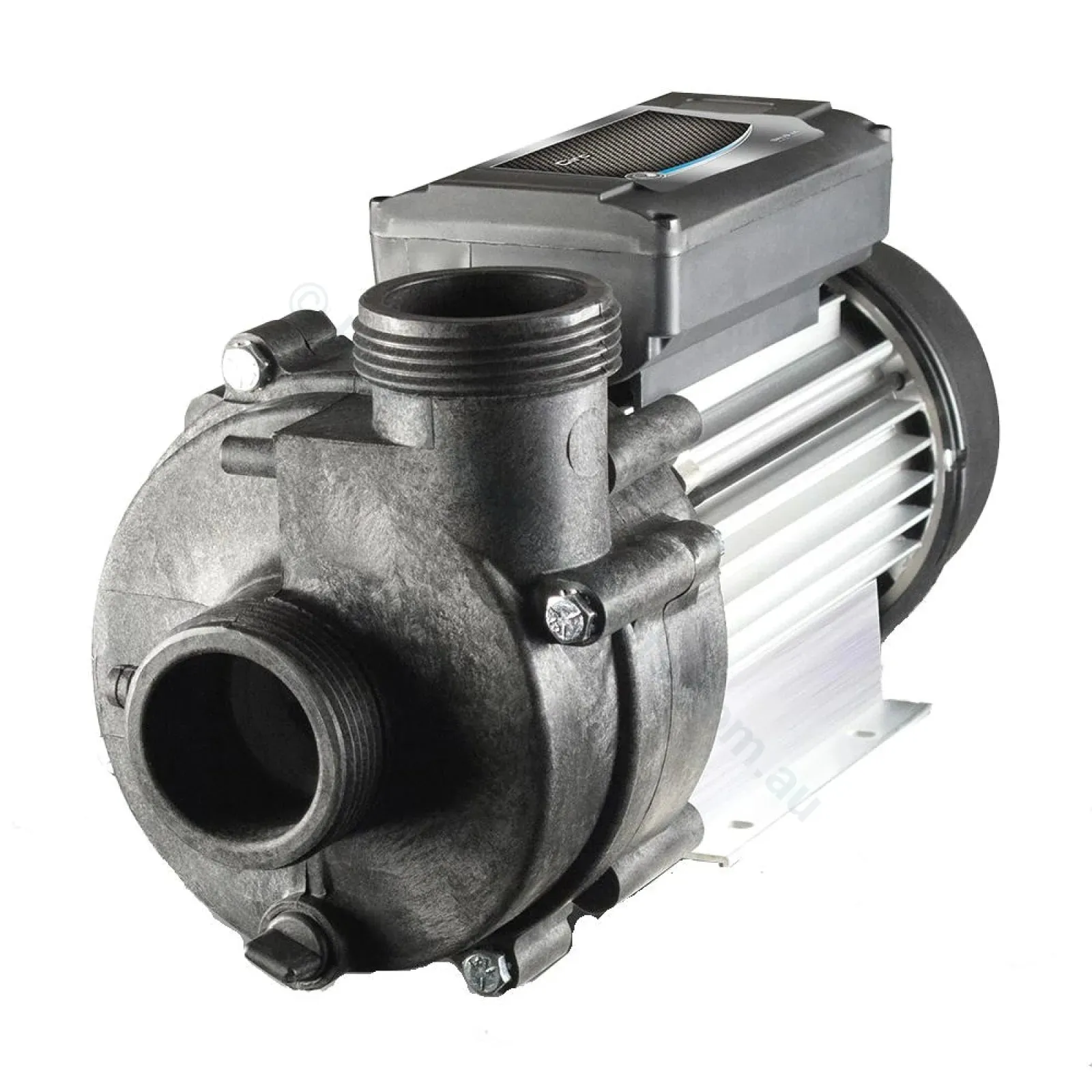

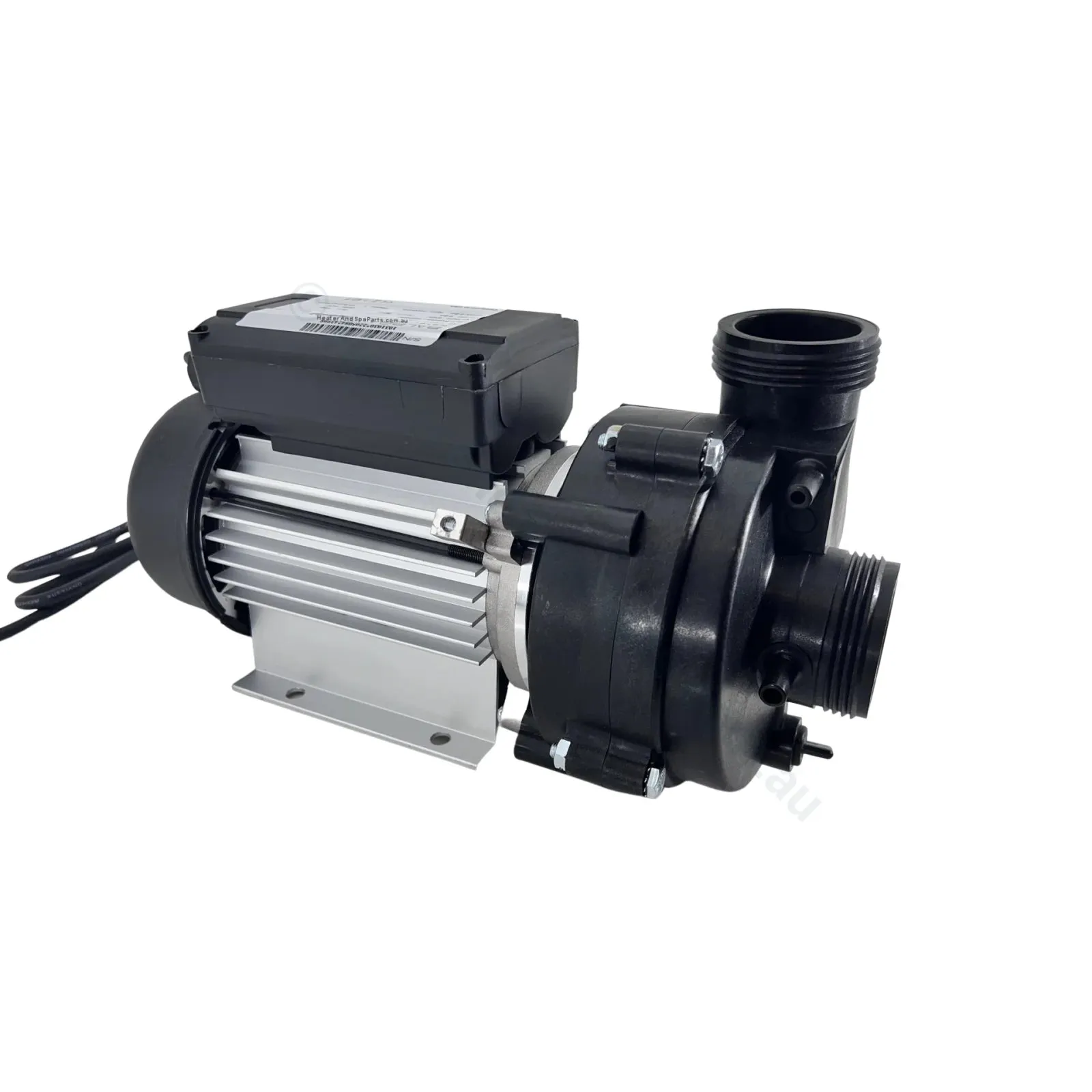

Genuine Balboa Circ Pump. Replaces all older Balboa 1030017 / 10700107 / 1031030 / Ultima 0.25HP circulation & filtration spa pumps with new part number 1031030.

• Fast Shipping or Pick-Up.
• Physically Kept in Stock unlike most online sellers.
• Genuine Balboa product, not an inferior Chinese copy.

Important Notes:

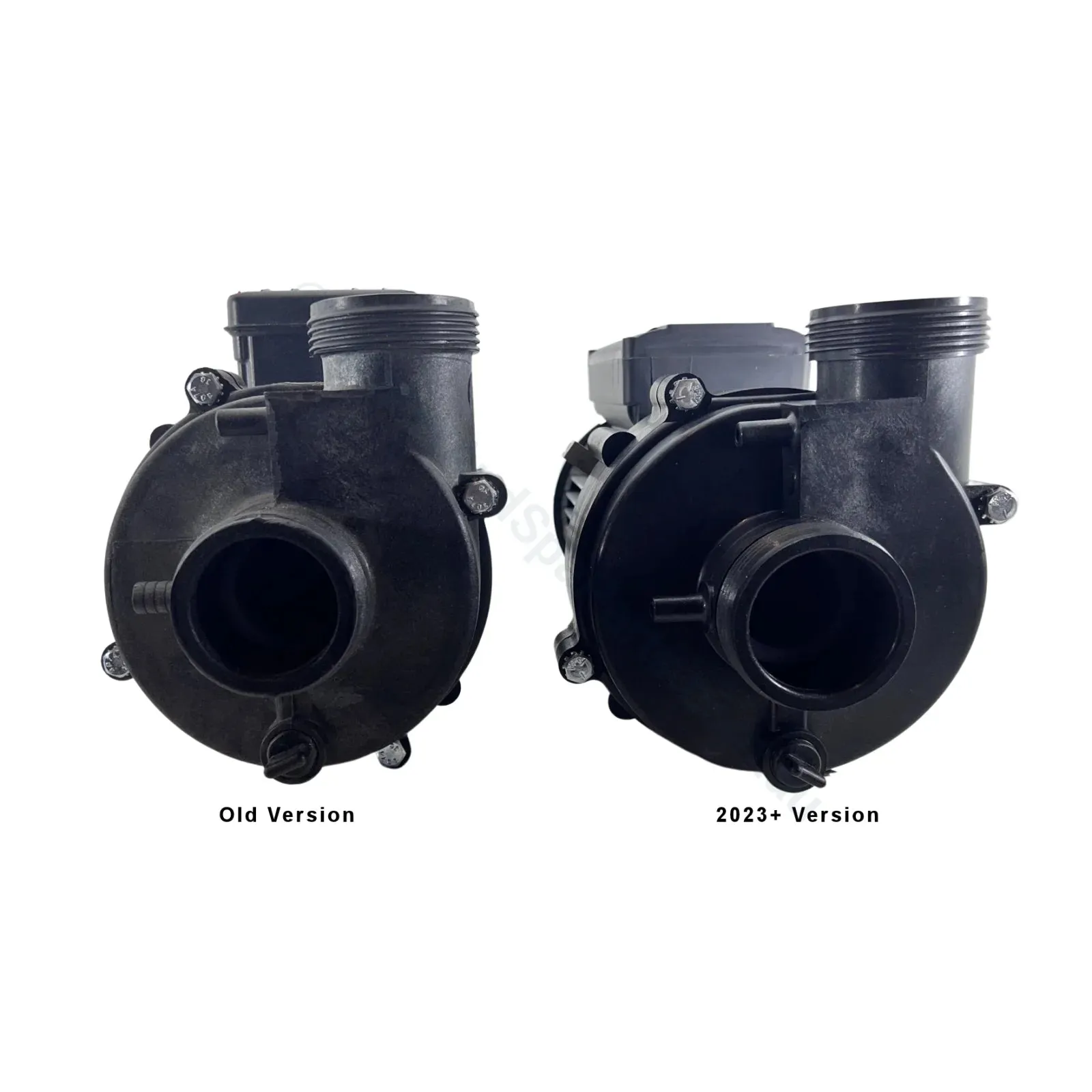

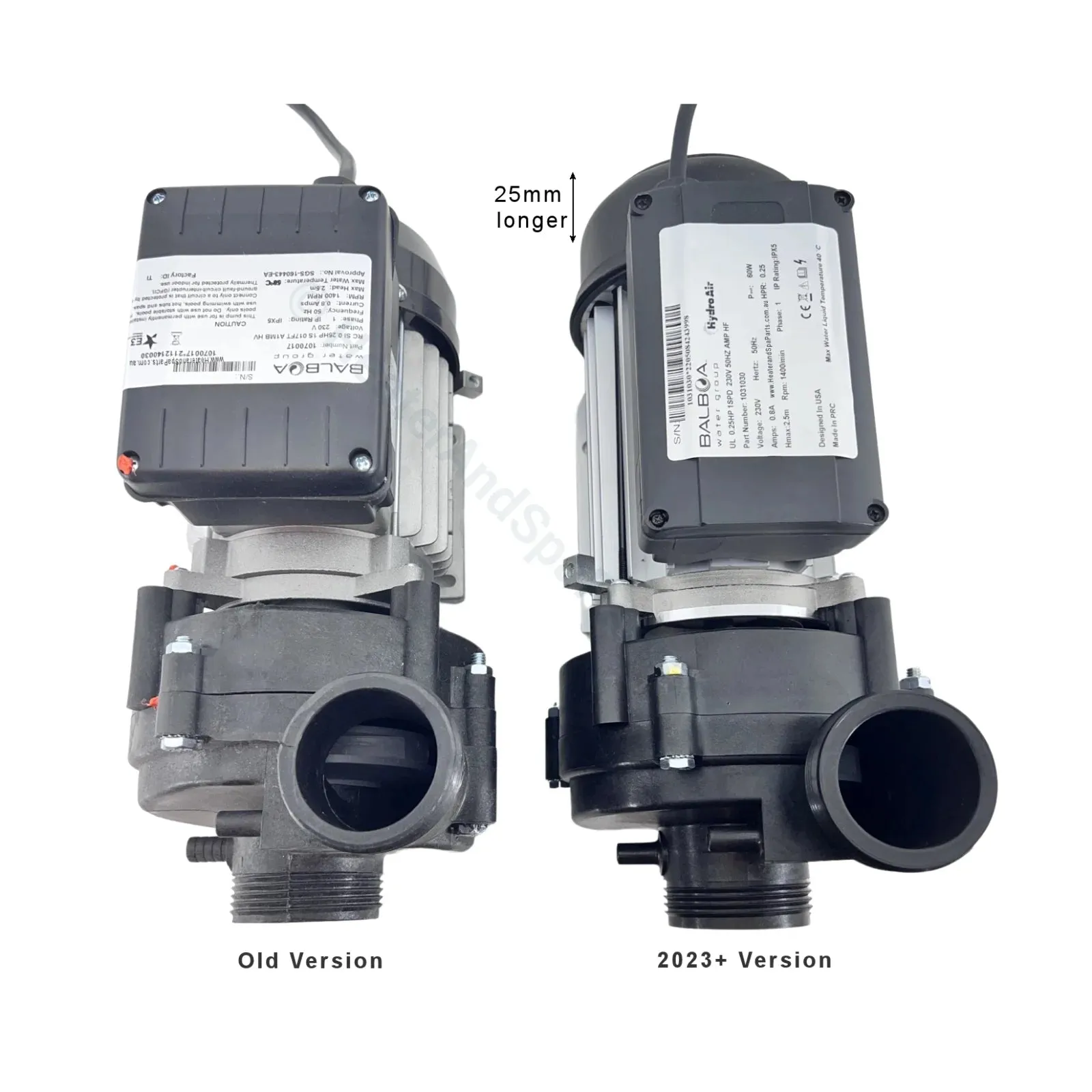

• As of 2023, these pumps have a new motor but same wet-end, and are ~25-30mm longer than the older models, but the motor mounts and black wet-end are the same same.
• Cable is 1.3m. .
• Slightly louder than older models. For a quieter and smaller pump,  may be adapted for use.

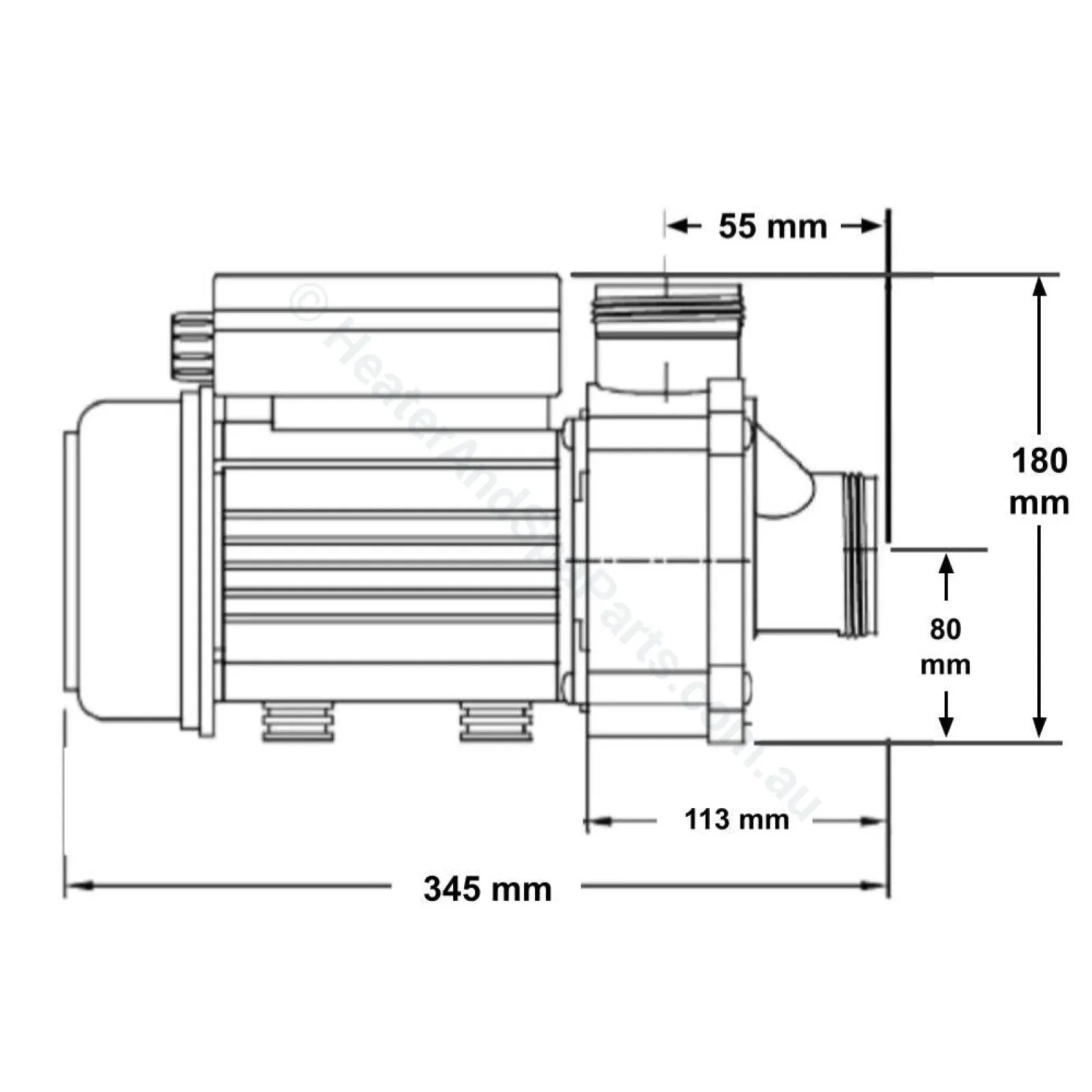

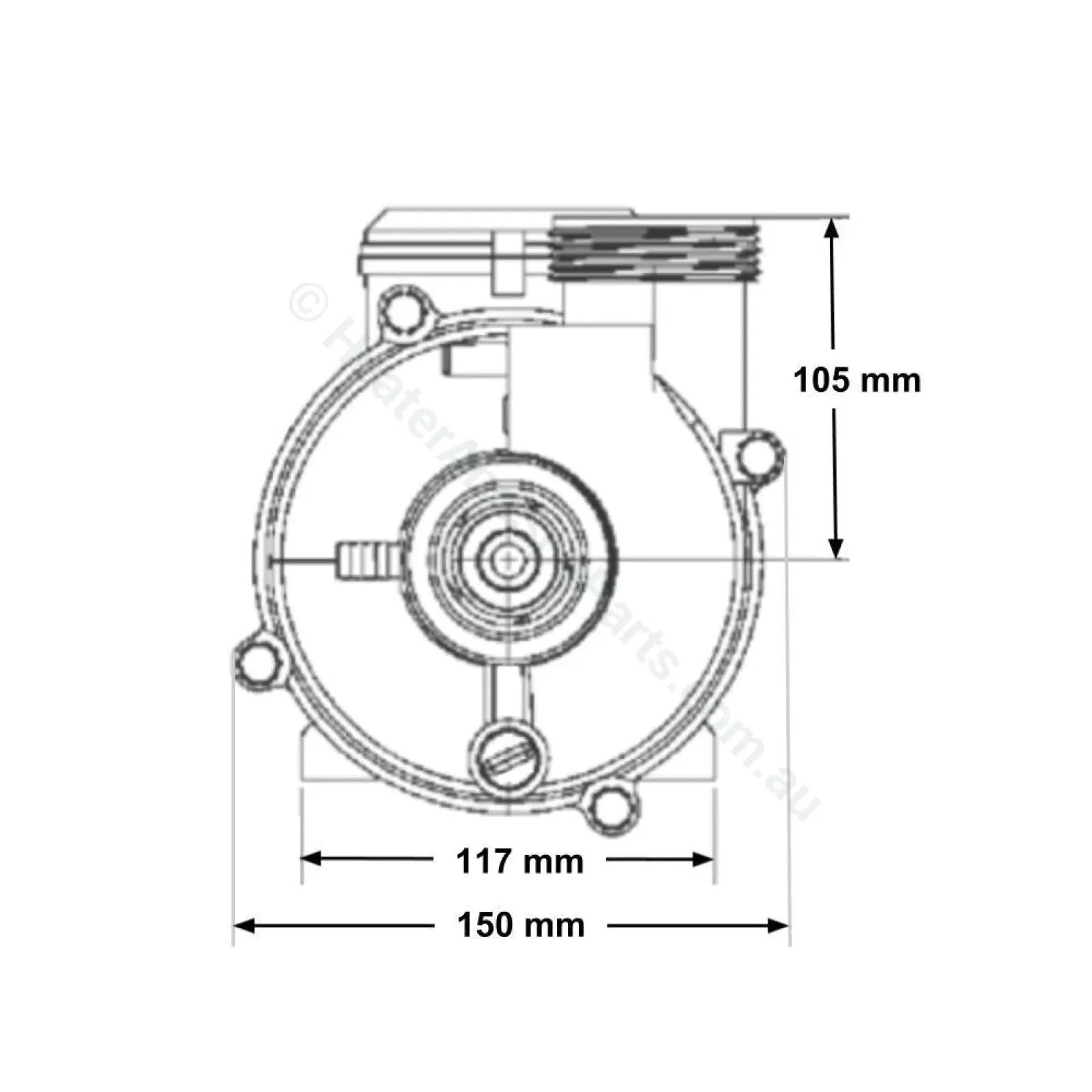

Dimensions:

• Length: ~350mm (~25-30mm longer than older models)
• Height:
• Width:

• Weight: ~3kg

Used by Spa Industries, Bullfrog, Signature, Designer, Leisurite, Heritage, Cyclone, Lanark, Heritage, H20, Artesian Spas, and many others.

These pumps have an in-built thermal limit switch. When the winding fails, they may overheat, and temporary switch off. This may be the source of Low Flow, HFL, or HL error codes in Balboa spa control systems.

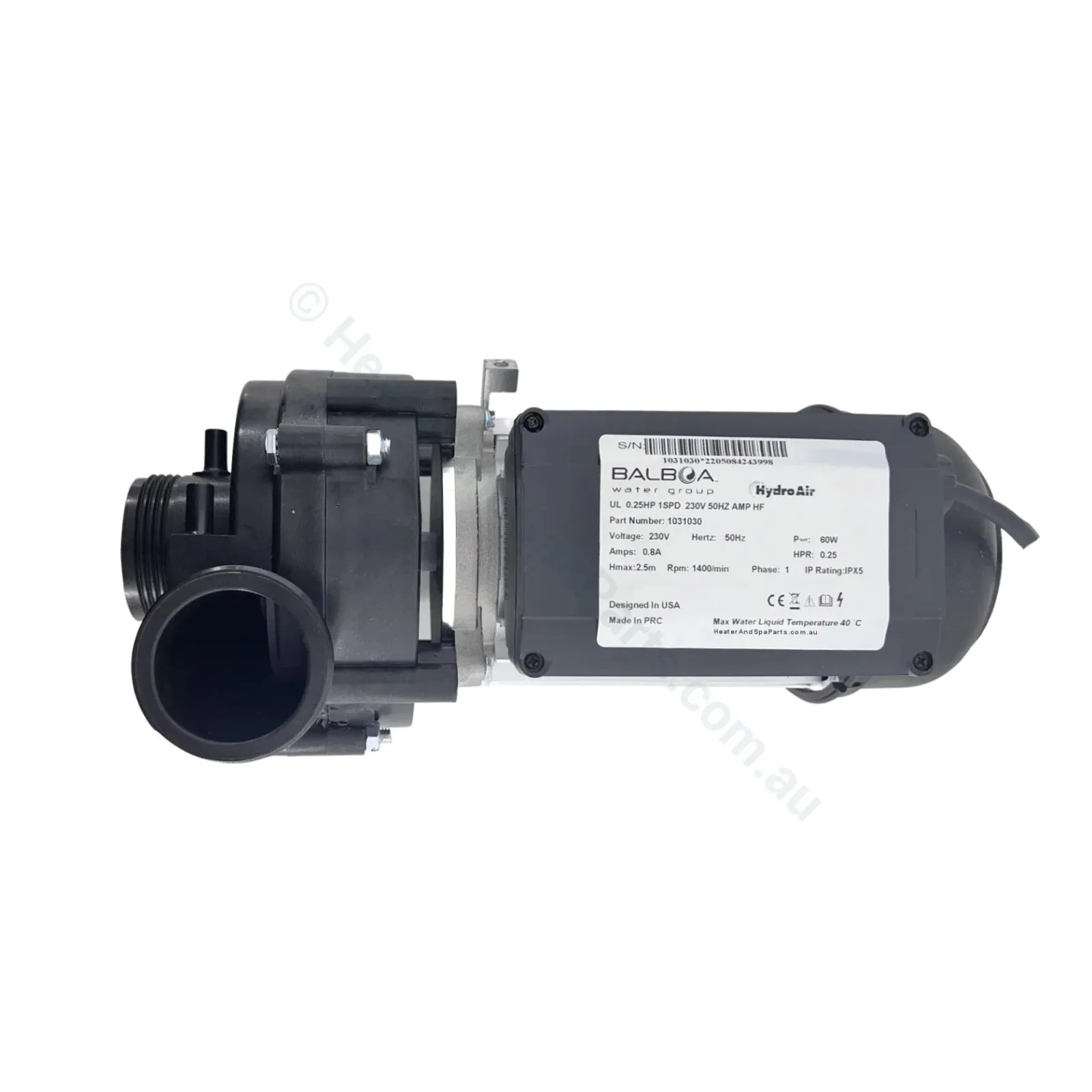

Balboa Water Group Circulation / Filtration Pump Specifications:

• Part Numbers: Current 1031030 supersedes 1030017 / 1070017 / B-1070017 / 1030056 / APUMC2552A / APUMC2552B / APUMBCIR40 / 1031030 / Hydroair
• Power: 0.25HP
• Voltage: 220-240 V
• Phase: 1
• IP Rating: IPX5
• Frequency: 50 Hz
• Current: 0.8 Amps / 60W
• RPM: 1400 RPM
• Max Head: 2.5m
• Max Water Temperature: 50°C

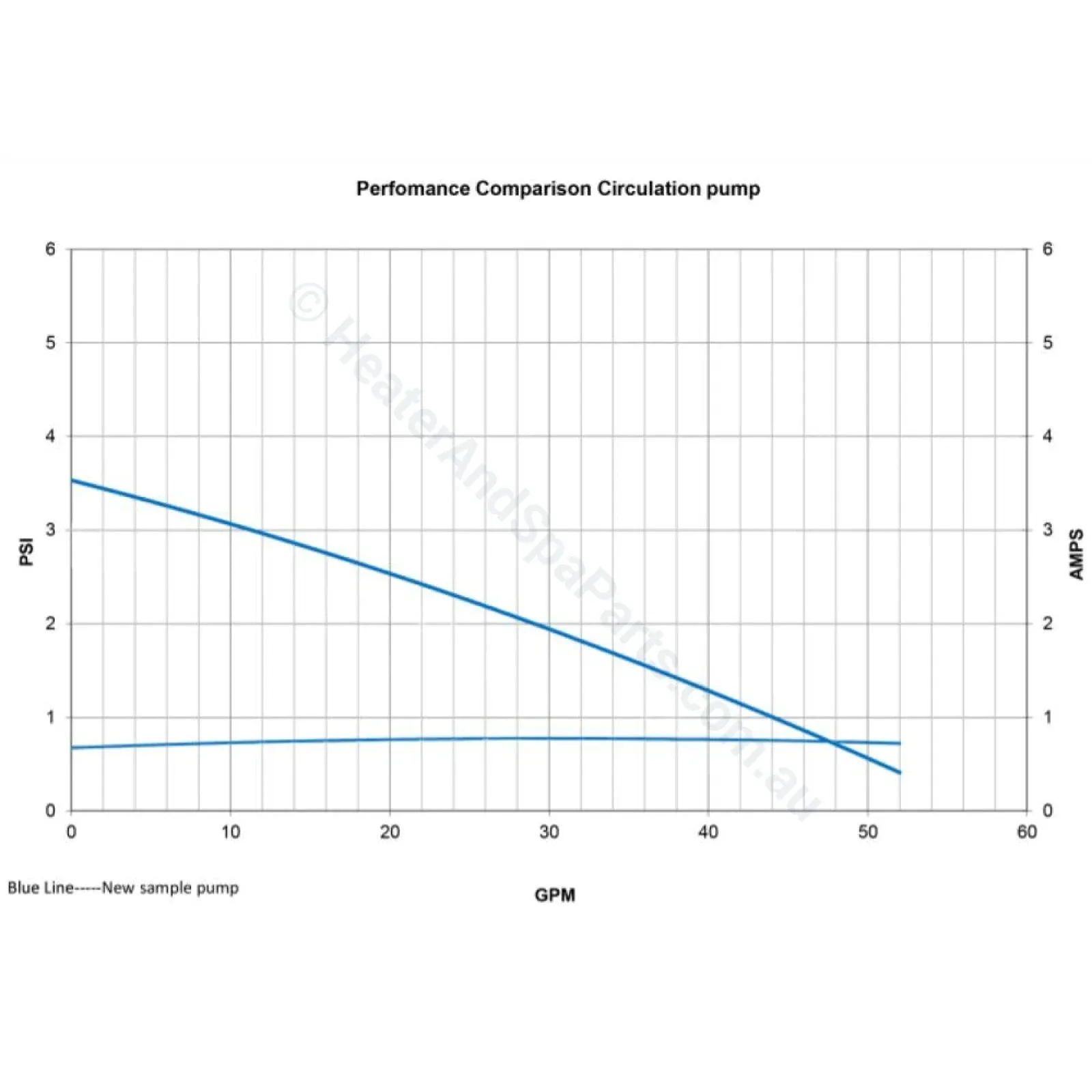

• Flow Rate: 100-150lpm / 127LPM @ 2.89m Head Pressure
• Energy Rating: 6 star energy rating - uses 460 kWh* per year (@ 6.5 hrs per day)
• Plug: AMP plug with 1.3m lead. .
• Unions: (not supplied)
