Pan Depth: 7-1/2”
Pan Capacity: 7 Quarts (6.6 Liters)
System Capacity: 8 Quarts (7.6Liters)
Stroke Clearance: 4.125" (With Steel Rods, Check Crank Scraper Before Final Install)

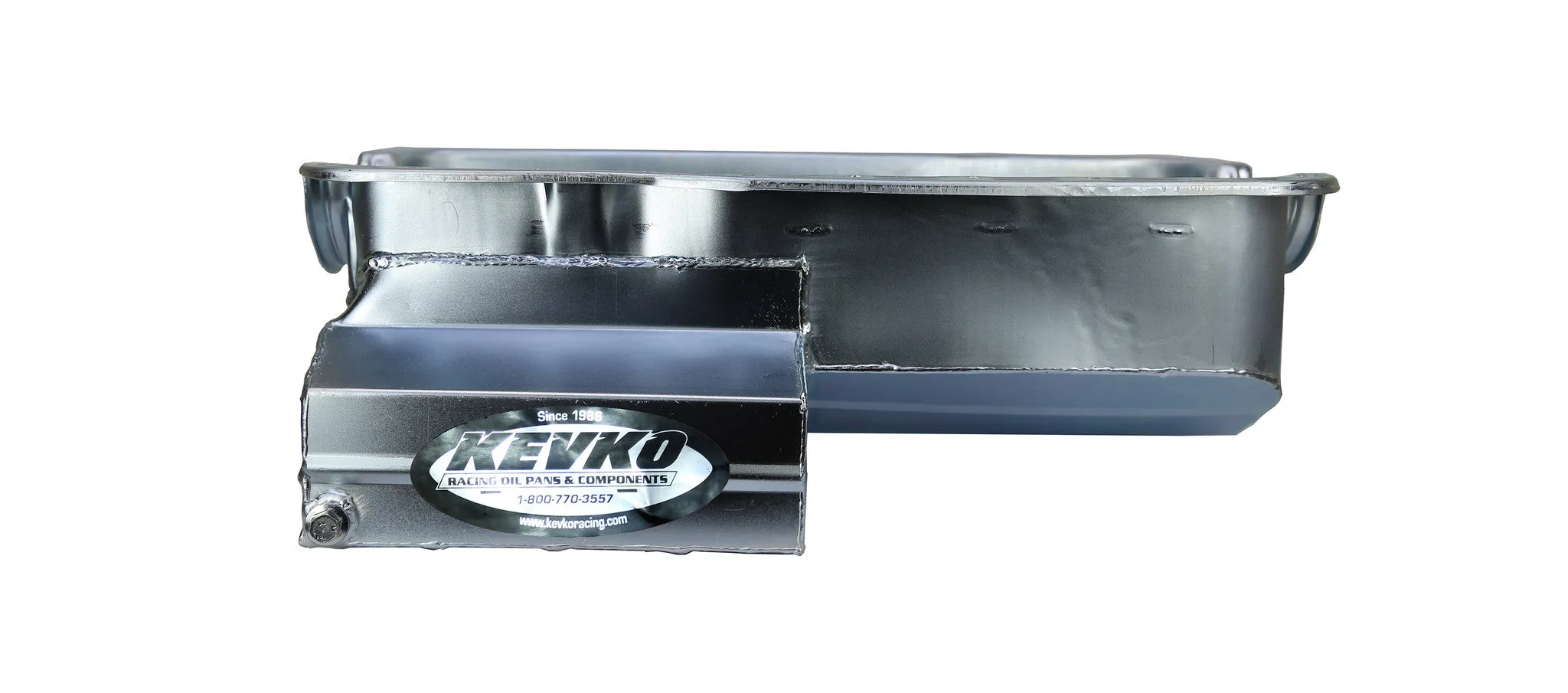

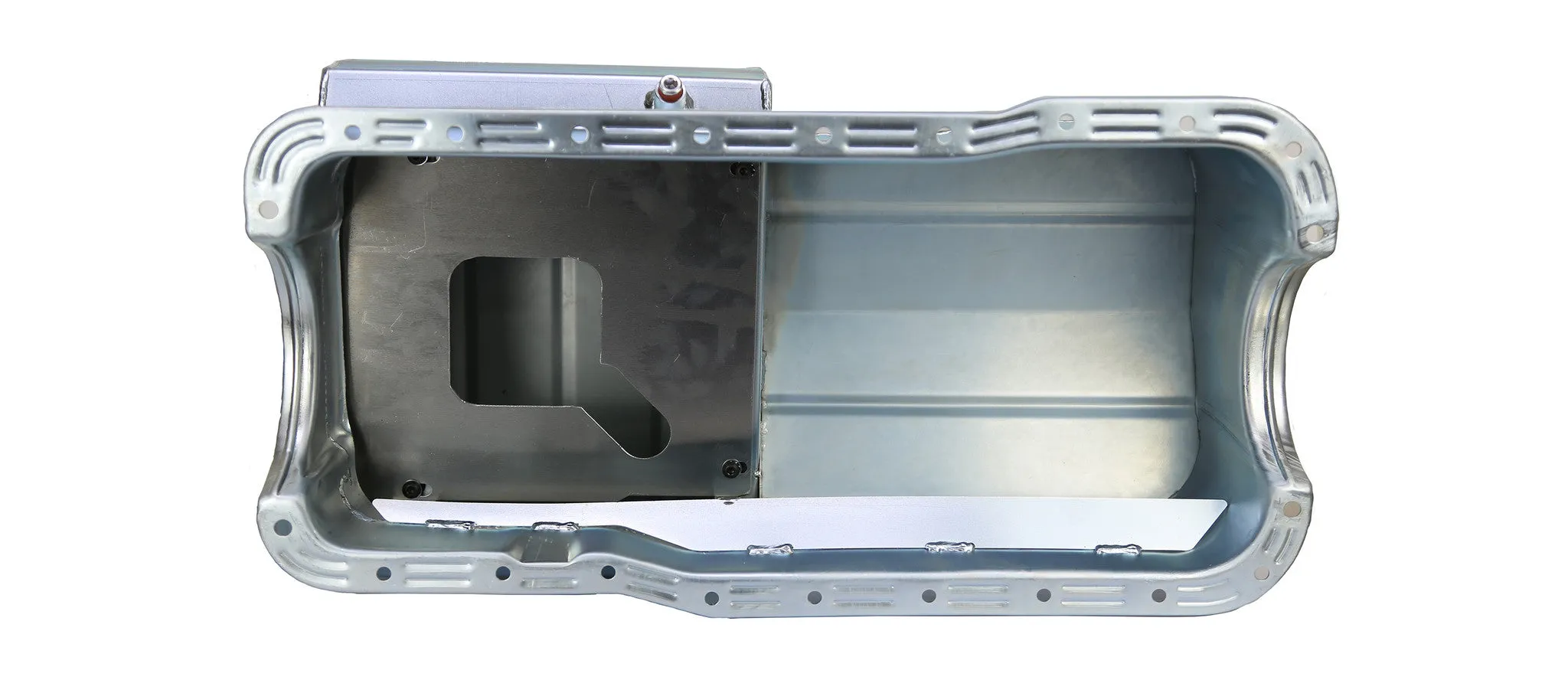

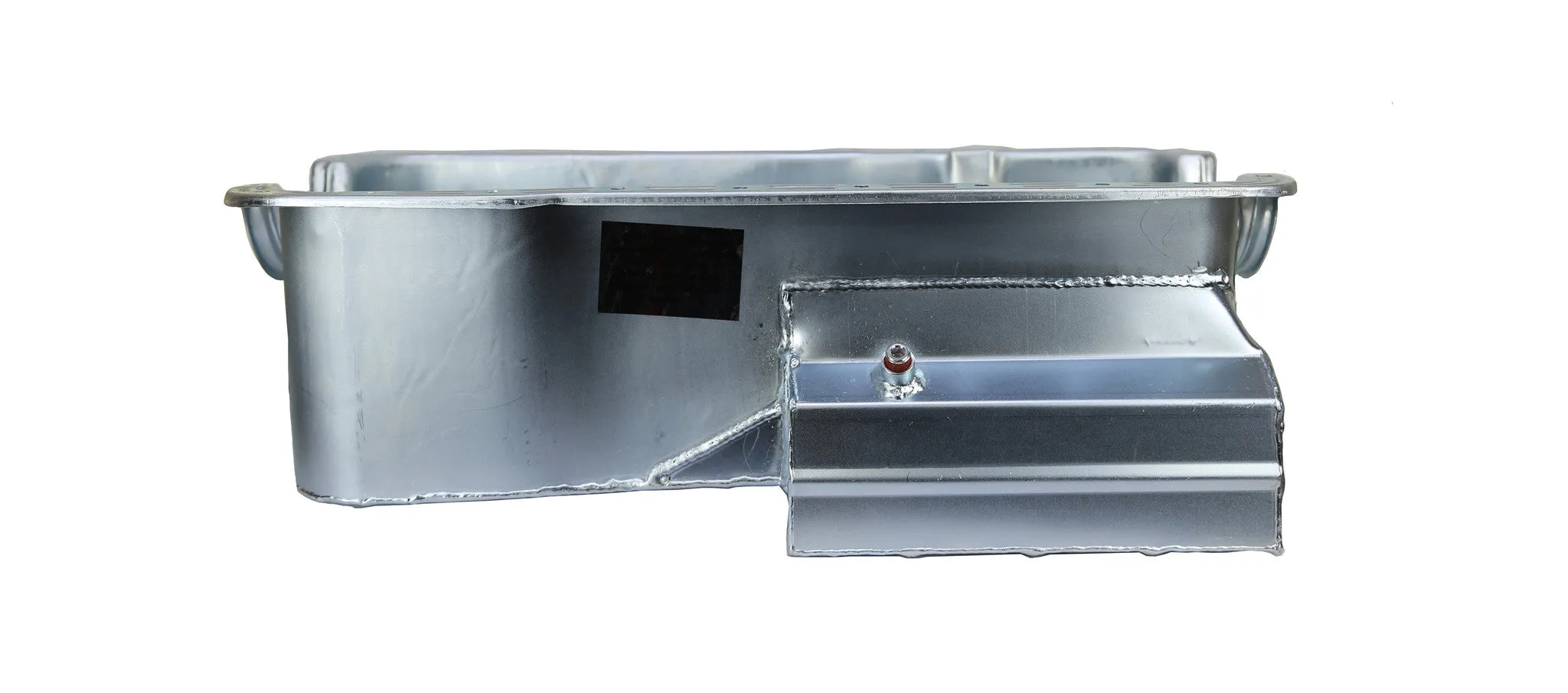

Description: This pan is 7 1/2" deep, 10" long, and has a 12" wide sump. The front of the 302 (F406) is 5 1/2" deep. The depth on the front of the 351W (F407) is 6 1/2" deep. This pan is used for rack and pinion type steering and other Ford conversions. Does not work with Stock Starters. Fits 164 tooth Flywheel.
*Oil pans built for the SHP block are built to order and will be shipped raw, with no finish. Zinc Silver Plating is available - Call (800) 770-3557 for details.*
351W Accessories
| Part Number | Description | |
| 351W Pickup Tube, works with Standard and High Volume Pumps | ||
| Pickup Tube Stud for 351W (OEM Style) | ||
| Standard Volume Pump | ||
| High Volume Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| Fel-Pro 1-Piece Gasket |
302 Accessories
| Part Number | Description | |
| 302 Pickup Tube-Works with Standard and High Volume Pumps | ||
| 302 Pickup Tube Support Stud | ||
| Standard Volume Oil Pump | ||
| High Volume Oil Pump | ||
| Intermediate Oil Pump Drive Shaft | ||
| Melling Select Performance Oil Pump | ||
| Fel-Pro Multi-Piece Gasket | ||
| 221-302 Ford 1-Piece Gasket |
Miscellaneous Accessories
| Part Number | Description | |
| 1/4" Universal Budget Rigid Dipstick | ||
| 1/4" NPT Stainless Steel Universal Flex Dipstick | ||
| 1/4" NPT LoKar Universal Flex Dipstick with Locking Top | ||
| Standard Drain Plug | ||
| Magnetic Drain Plug | ||
| Ford Motor Mounts | ||
| Lift Plate |
