Condition: New

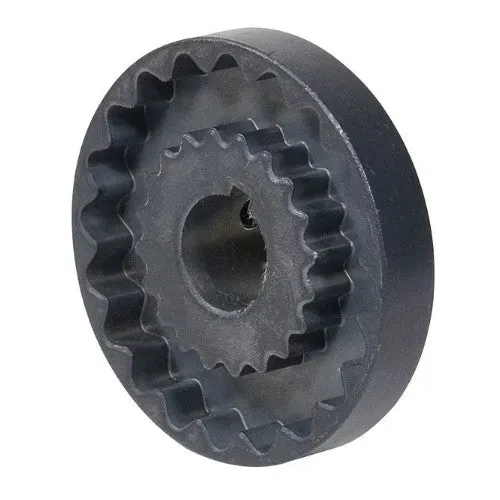

Type J flanges are manufactured of sintered carbon steel. The powdered metal manufacturing process provides high dimensional accuracy and uniform material properties for high strength. The outside face of the flange is precision machined, allowing the surface to be used to align the coupling without special tools.
These easy-to-install, low-maintenance Sleeve Coupling Flanges offer clean, dependable and quiet performance. No lubrication is required. Suitable for a variety of applications including pumps, fans/blowers, compressors, mixers, electric motors, and conveyors.
Specifications
- Bore Diameter: 7/8 in
- Rated Torque: 156 lb-in
- Max RPM: 7,600 RPM
- Setscrew Length: 1/4 in
- Bore Type: Finished with Keyway
- Bore Tolerance: .0005 to .0015 in
- Keyseat: 3/16 in x 3/32 in
- Setscrew Size: 1/4-20 UNC
- HP Rating @ 100 RPM: 0.25 HP
